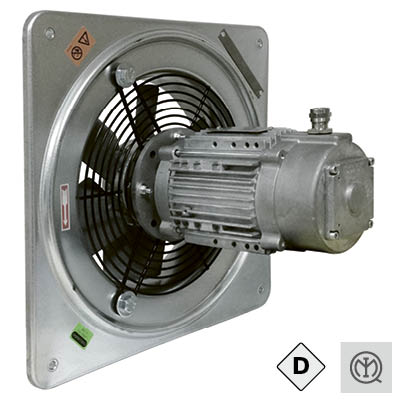

Plate mounted axial fans

The axial fans of the QCM-ATX series are manufactured and certified according to the Atex Directive 2014/34/EU.

They are specifically designed to be used in zone 21, i.e. in areas or environments where it is necessary to guarantee a high safety factor
against explosions due to the presence of flammable dusts (II2D).
They are suitable to convey clean air with a temperature included in a range from -20°C to +60°C (on request, from -40°C to +60°C)

• Wall or window installation
• Diameters from 200 to 710 mm
• Airflow from 1,050 to 17,500 m³/h
• Supporting frame in drawn steel sheet, with wide radius inlet cone; models 630 and 710  with epoxy-polyester powder-coated frame
• Airflow from motor to impeller
• Inlet protection guard in steel painted rod, weatherproof
• The motor includes an overtemperature protection system equipped with PTC thermistors in accordance with DIN 44081, DIN 44082, IEC 60034-11-2 and suitable for speed regulation by inverter-type controller (for three-phase version)

Series available in construction configuration:
